Ferroelectric Patterning at the Nanoscale for the 600th Anniversary

Ferroelectric materials have the ability to retain an electric polarization even after an external electric field is removed. This makes them key candidates for a range of advanced technologies, including non-volatile memories (FeRAM), energy-efficient transistors, neuromorphic computing, piezoelectric sensors and actuators, and ultra-high-density data storage.

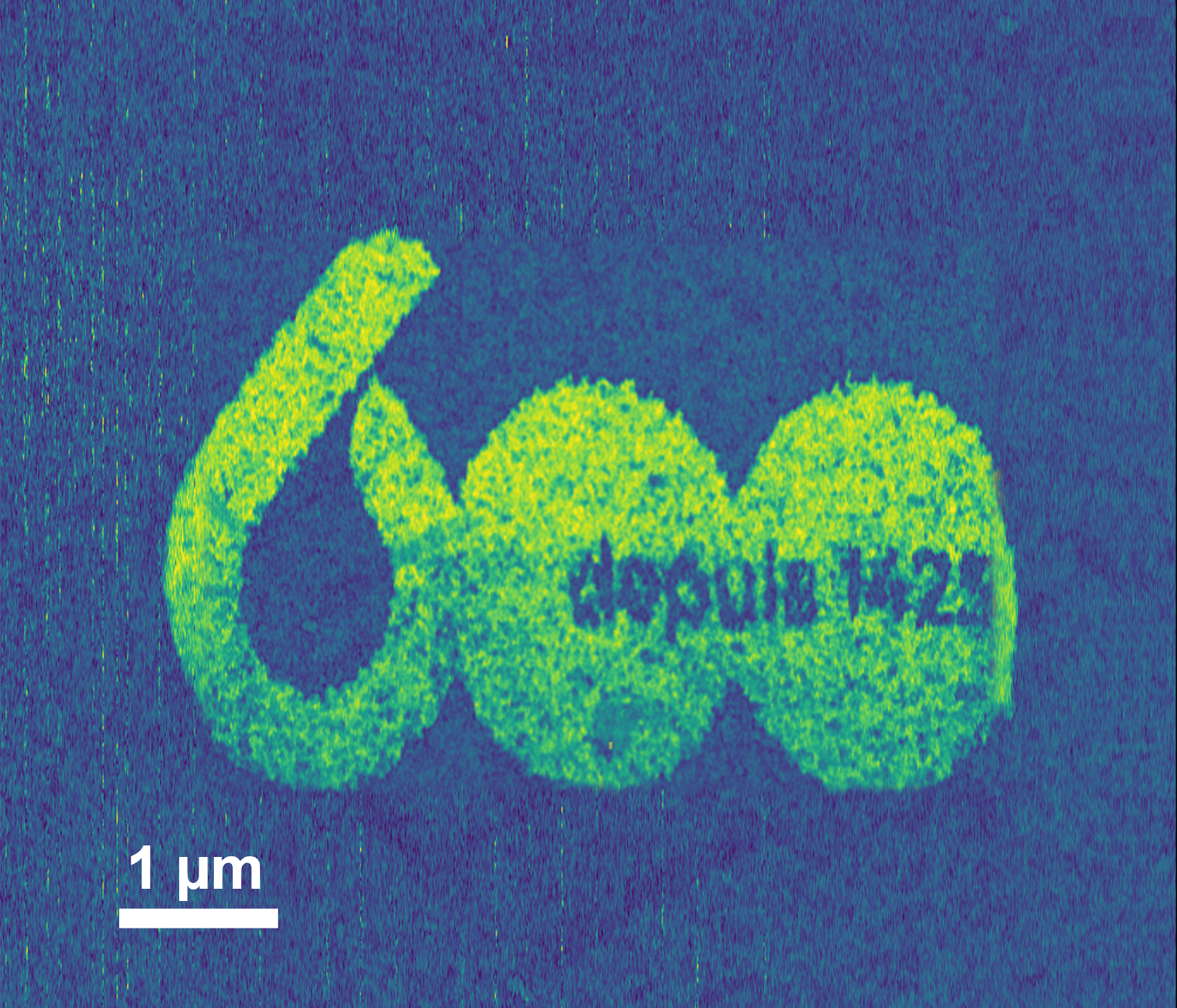

For this demonstration, a 50 nm-thick film of the ferroelectric polymer polyvinylidene fluoride–trifluoroethylene (PVDF-TrFE) was used to engrave the 600th anniversary logo at the microscale. Jean Spièce, a researcher in the BSMA division, programmed a scanning probe microscopy tool to locally “draw” arbitrary shapes by precisely modifying the material’s polarization.

The technique is based on scanning probe microscopy, where a sharp tip (~10 nm radius) is brought into contact with the film's surface. To change the local polarization - effectively “writing” the pattern - a voltage bias (typically +10 V or -10 V) is applied between the tip and the sample’s bottom electrode. This reorients the electric dipoles in the material, switching their direction upward or downward depending on the applied voltage.

After writing, the same tip is used to “read” the polarization using Piezoresponse Force Microscopy (PFM). Because ferroelectric materials are also piezoelectric, applying a small alternating voltage causes tiny mechanical deformations in the film, aligned with the polarization direction. These movements are detected with high sensitivity using lock-in amplification, allowing a nanoscale image of the polarization to be reconstructed.

While primarily intended as a scientific outreach demonstration, this work illustrates the ability of scanning probe techniques to manipulate and visualize matter at the nanoscale. It also highlights the versatility of ferroelectric materials in future nanoelectronic and data storage applications.


Authors: Jean Spièce, Pascal Gehring, Bernard Nysten
